Manual polarimeter mod. 404 - ABS structure
VAT not included
Stock: 7
Specifications
Illumination by 20W sodium vapor lamp: 589.44nm
Reset to zero by means of micro and macro commands.
Two scales 0º to 180º.
Eyepiece equipped with diopter adjustment ring.
100mm and 200mm tubes.
Plastic equipment structure
Slanted sample compartment accommodates tubes up to 220nm
Double reading scale by Vernier: ±0.05º
This manual polarimeter is ideal for determining the concentration of sugars in sample levels for applications in the pharmaceutical, education and cosmetic industries, etc.
For the specific Optical Rotation of constant value in the substance. uses 100mm tubes
According to the international sugar scale, 26 grams of pure sugar in a solution, the angle of rotation of the solution is 34.626. By the above rule, you can calculate the purity of sugar.
The package includes:
- 1x User Manual
- 100mm tube 1x
- 200mm tube 1x
- 1x sodium lamp
- Tube and sight glass sealing ring (4x)
- 1x fuse
Power supply: 220VAC/50Hz
Related products
Optical equipments » Polarimeters » Accessories

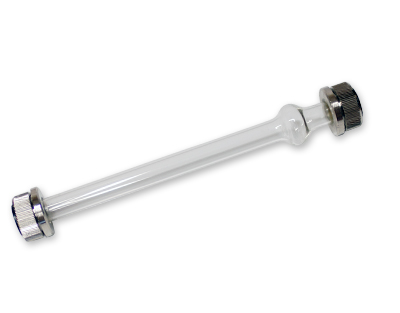

Test Tube for Polarimeter 100 mm.
